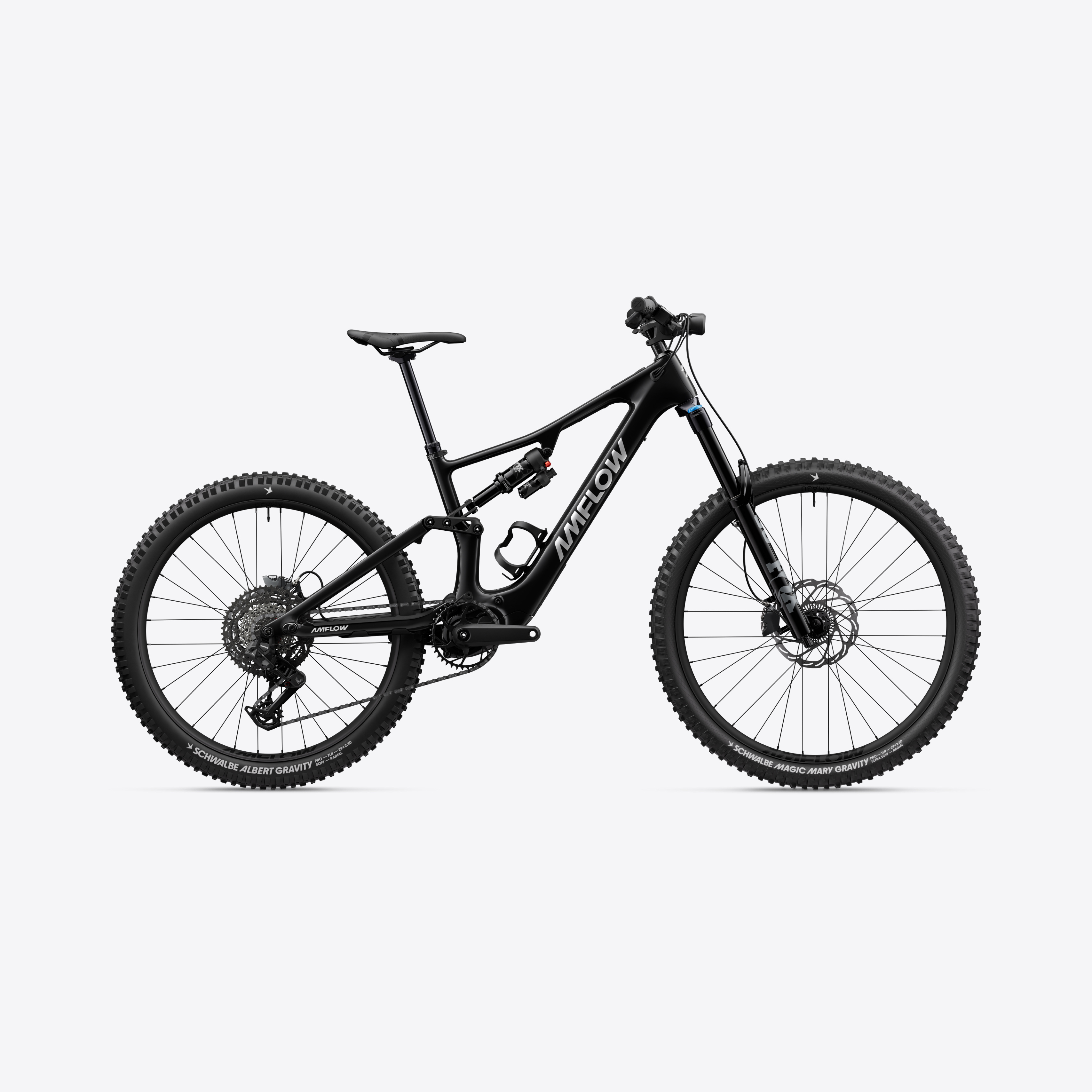

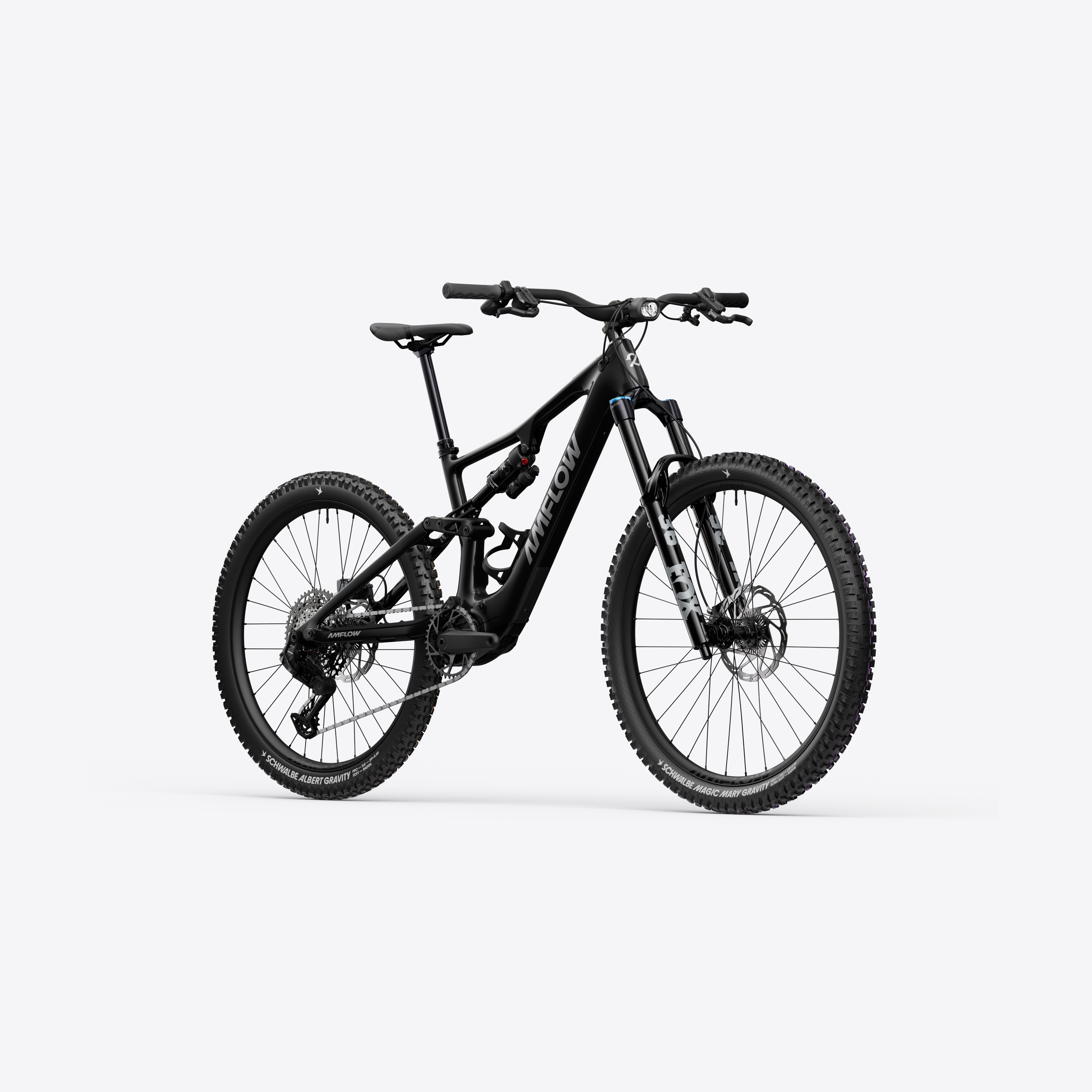

2027 Amflow PX Carbon | Electric Enduro Mountain Bike
The Amflow PX Carbon is a high-performance electric enduro mountain bike built for riders who refuse to choose between weight and power. Centred around an ultra-light full carbon fibre frame at just 20.6kg complete, it houses the Avinox M2S drive unit — delivering 130Nm nominal and 150Nm peak torque — alongside a 700Wh integrated battery with 12A fast charging. The result is a full-power eMTB that climbs relentlessly, descends confidently, and recharges in a fraction of the time of comparable bikes.
Geometry is where the PX Carbon really sets itself apart. With 40 adjustable configurations across head tube angle, bottom bracket height, and chainstay length, this electric mountain bike can be dialled in precisely for everything from steep technical enduro tracks to high-speed flow trails. FOX 36 Performance fork and FOX Float X Performance rear shock — both custom tuned for Amflow — deliver 160mm of controlled travel front and rear, while Magura Gustav Pro 4-piston hydraulic brakes with 203mm rotors provide stopping power you can trust in any condition.
Running a mullet wheel setup — 29" front for rollover speed, 27.5" rear for agility — wrapped in Schwalbe Radial tyres, and paired with a SRAM S1000 Eagle AXS wireless drivetrain, the PX Carbon is a complete package for serious trail and enduro riding. The 2-inch OLED display offers offline GPS navigation, Bluetooth connectivity, and full integration with the Avinox Ride app for customisable assist modes, OTA updates, and remote bike protection.
Key Highlights:
| Frame | Amflow PX Carbon Frame |
| Colour | Phantom Black |
| Frame Geometry | 40 adjustable geometry configurations (5 headset angle settings, 2 BB height settings, 4 chainstay length settings) |
| Frame Wheel Compatibility | Compatible with 27.5? and 29? rear wheels |
| Motor | Avinox M2S Drive Unit — Nominal 130N·m, Peak 150N·m |
| Display | Avinox Screen: 2-inch OLED Control Display |
| Battery | Avinox Integrated Battery: 700Wh |
| Controllers | Avinox Wireless Controllers: Right and left sides |
| Charger | Avinox Fast Charger: 12A / 508W |
| Rear Shock | FOX Float X Performance (MY 2027) — 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock |
| Fork | FOX 36 Performance (MY 2027) — 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset |
| Rear Derailleur | SRAM S1000 Eagle Transmission Derailleur |
| Chainrings | SRAM Eagle Transmission DM Chainring 38T for Avinox |
| Shift Levers | SRAM AXS Pod Controller |
| Cassette | SRAM XS-1270 Eagle Transmission Cassette 10-52T |
| Chain | SRAM Eagle 70 Transmission Flattop Chain |
| Crankset | Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
| Derailleur Power Supply | Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord) |
| Brakes | Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers |
| Rotors | Magura Sensor Rotor (203mm, 2.5mm) |
| Wheels | Amflow XMA-30 Mullet Version |
| Front Rim | Alloy, 29?, 30mm inner width, 32H, tubeless ready |
| Rear Rim | Alloy, 27.5?, 30mm inner width, 32H, tubeless ready |
| Spokes | SAPIM E-Light |
| Front Hub | Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt |
| Rear Hub | Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG |
| Front Tire | Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready |
| Rear Tire | Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready |
| Bar | Amflow Enduro Alloy Handlebar — 40mm Rise, 800mm Width, 35mm Diameter, 5° upsweep, 9° backsweep |
| Stem | Amflow Mountain Bike Split Stem — 35mm length, 35mm clamp diameter |
| Grips | Amflow Enduro Grip 2 Lock-on Grips |
| Saddle | Amflow Mountain Saddle |
| Seatpost | Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm) — M/L: 190mm | XL: 210mm | XXL: 230mm |
| Accessories | Avinox Front Light, Amflow Bottle Cage, Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip), 5/10mm Dropper Post Travel Reducing Spacer, Rear Light, Torque Wrench, Clear Frame Protection Film, Shock Pump, Quick Start Guide |
