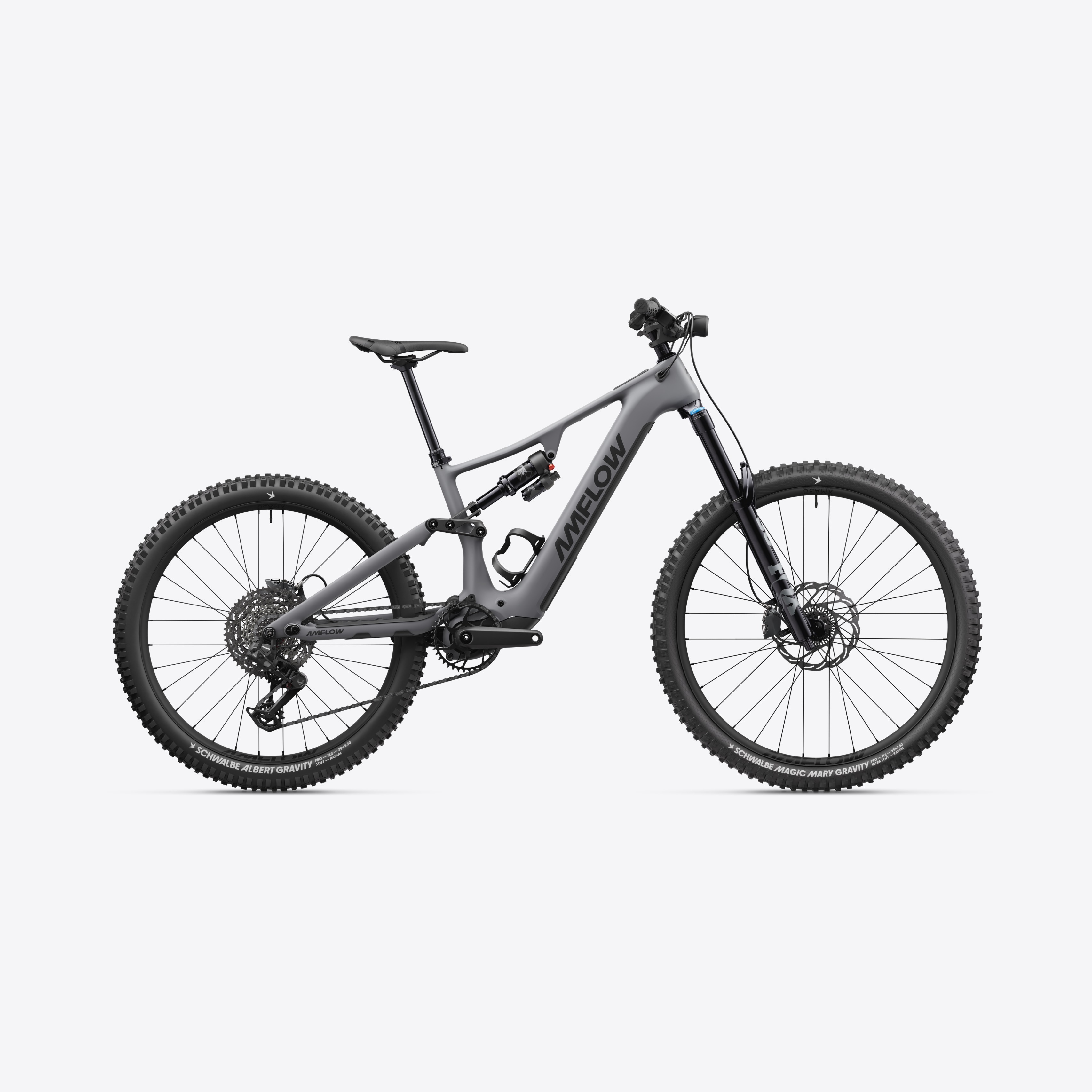

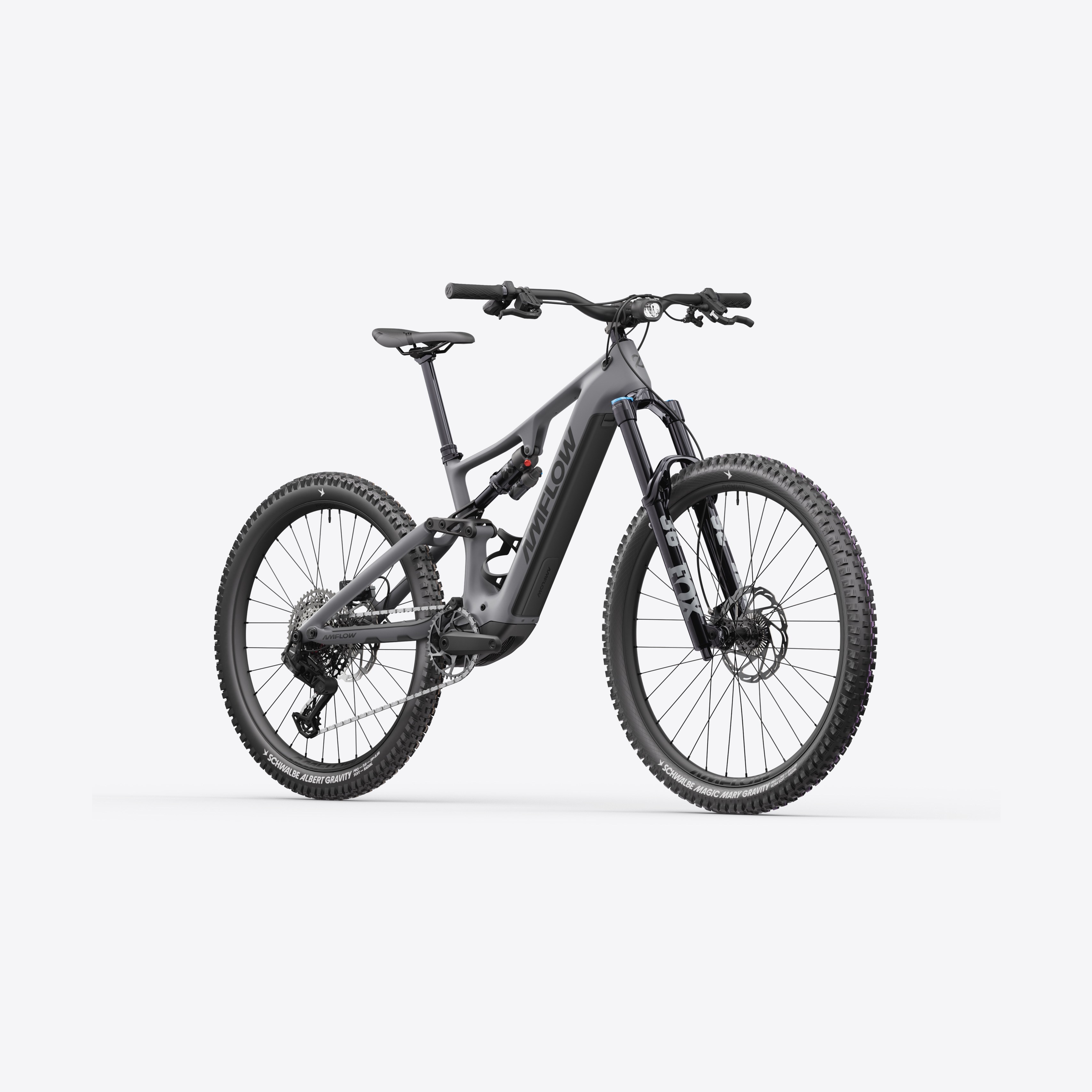

2027 Amflow PR Carbon Pro
Geometry, Tuned to the Terrain
Amflow PR features a cutting-edge progressive geometry. With precision fine-tuning available for the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations [2]. This allows for precise adaptation to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.
Ultra-Light Carbon Fiber Frame, Easy Handling
The Amflow PR frame weighs around 2.9kg [3], yet never compromises on strength or rigidity. It handles heavy demands with a light touch, making every ride through rough terrain more composed.
Quick Swap, Easy Recharge
Amflow PR supports independent battery removal for charging and quick swapping, flexibly solving the problem of finding charging stations and enabling rapid energy replenishment on long trips. While reducing maintenance costs, it also makes every departure more worry-free.
| Frame | Amflow PR Carbon Pro Frame |
| Frame Geometry | 40 adjustable geometry configurations (5 headset angle settings, 2 BB height settings, 4 chainstay length settings) |
| Colour | Basalt Grey |
| Frame Wheel Compatibility | Compatible with 27.5″ and 29″ rear wheels |
| Motor | Avinox M2S Drive Unit — Nominal 130N·m, peak 150N·m |
| Display | Avinox Screen: 2-inch OLED Control Display |
| Battery | Avinox Removable Battery: 800Wh |
| Controllers | Avinox Wireless Controllers: Right and left sides |
| Charger | Avinox Fast Charger: 12A / 508W |
| Rear Shock | FOX Float X Performance (MY 2027) — 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock |
| Fork | FOX 36 Performance (MY 2027) — 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset |
| Rear Derailleur | SRAM S1000 Eagle Transmission Derailleur |
| Chainrings | SRAM Eagle Transmission DM Chainring 38T for Avinox |
| Shift Levers | SRAM AXS Pod Controller |
| Cassette | SRAM XS-1270 Eagle Transmission Cassette 10-52T |
| Chain | SRAM Eagle 70 Transmission Flattop Chain |
| Crankset | Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
| Derailleur Power Supply | Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord) |
| Brakes | Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers |
| Rotors | Magura Sensor Rotor (203mm, 2.5mm) |
| Wheels | Amflow XMA-30 Mullet Version |
| Front Rim | Alloy, 29″, 30mm inner width, 32H, tubeless ready |
| Rear Rim | Alloy, 27.5″, 30mm inner width, 32H, tubeless ready |
| Spokes | SAPIM E-Light |
| Front Hub | Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt |
| Rear Hub | Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG |
| Front Tire | Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready |
| Rear Tire | Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready |
| Bar | Amflow Enduro Alloy Handlebar — 40mm Rise, 800mm Width, 35mm Diameter, 5° upsweep, 9° backsweep |
| Stem | Amflow Mountain Bike Split Stem — 35mm length, 35mm clamp diameter |
| Grips | Amflow Enduro Grip 2 Lock-on Grips |
| Saddle | Amflow Mountain Saddle |
| Seatpost | Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm) — M: 190mm | L/XL: 210mm | XXL: 230mm |
| Accessories | Avinox Front Light, Amflow Bottle Cage, Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip), Removable Battery Keys ×2, 5/10mm Dropper Post Travel Reducing Spacer, Quick Start Guide, Rear Light, Torque Wrench, Clear Frame Protection Film, Shock Pump |
