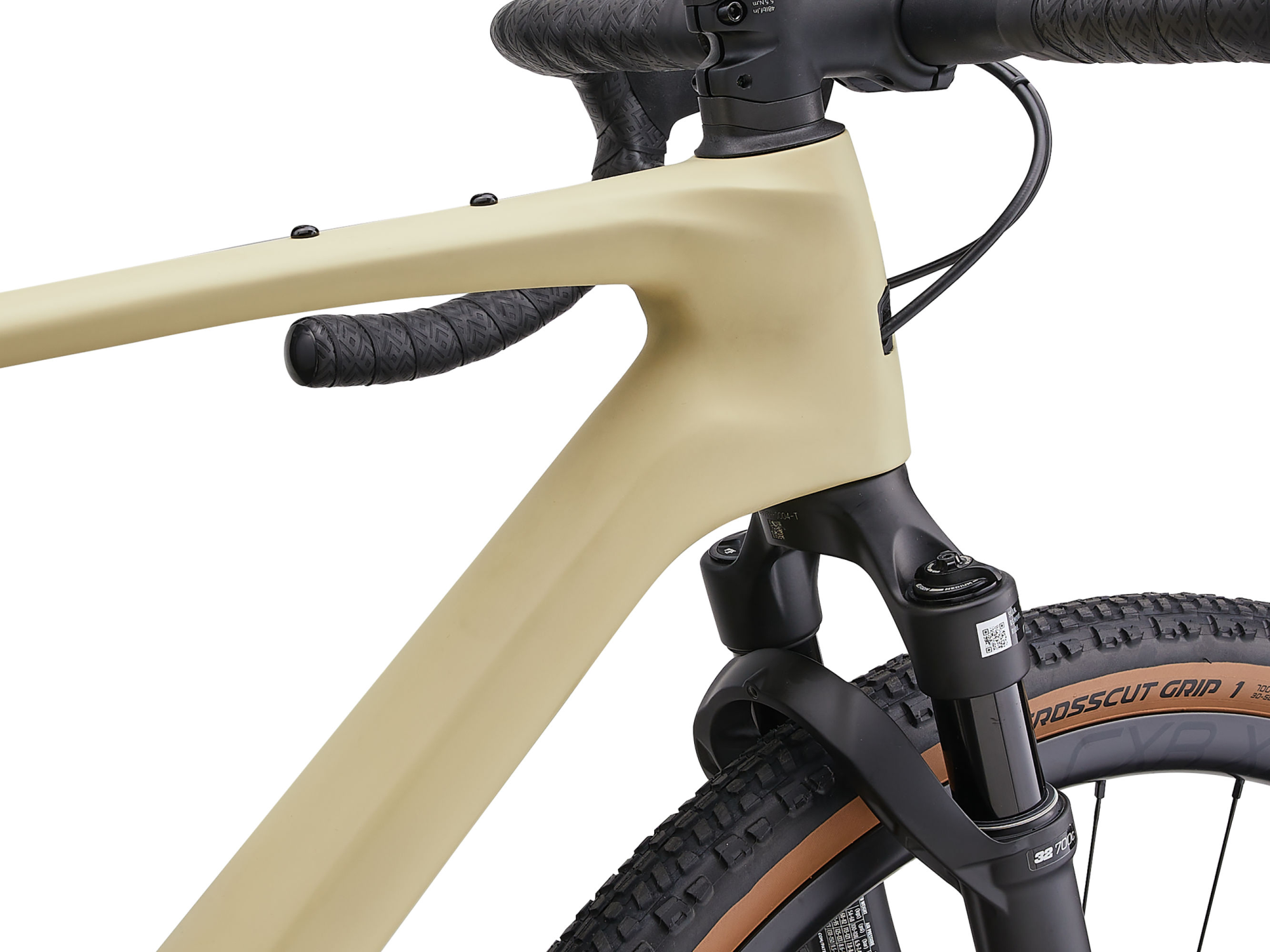

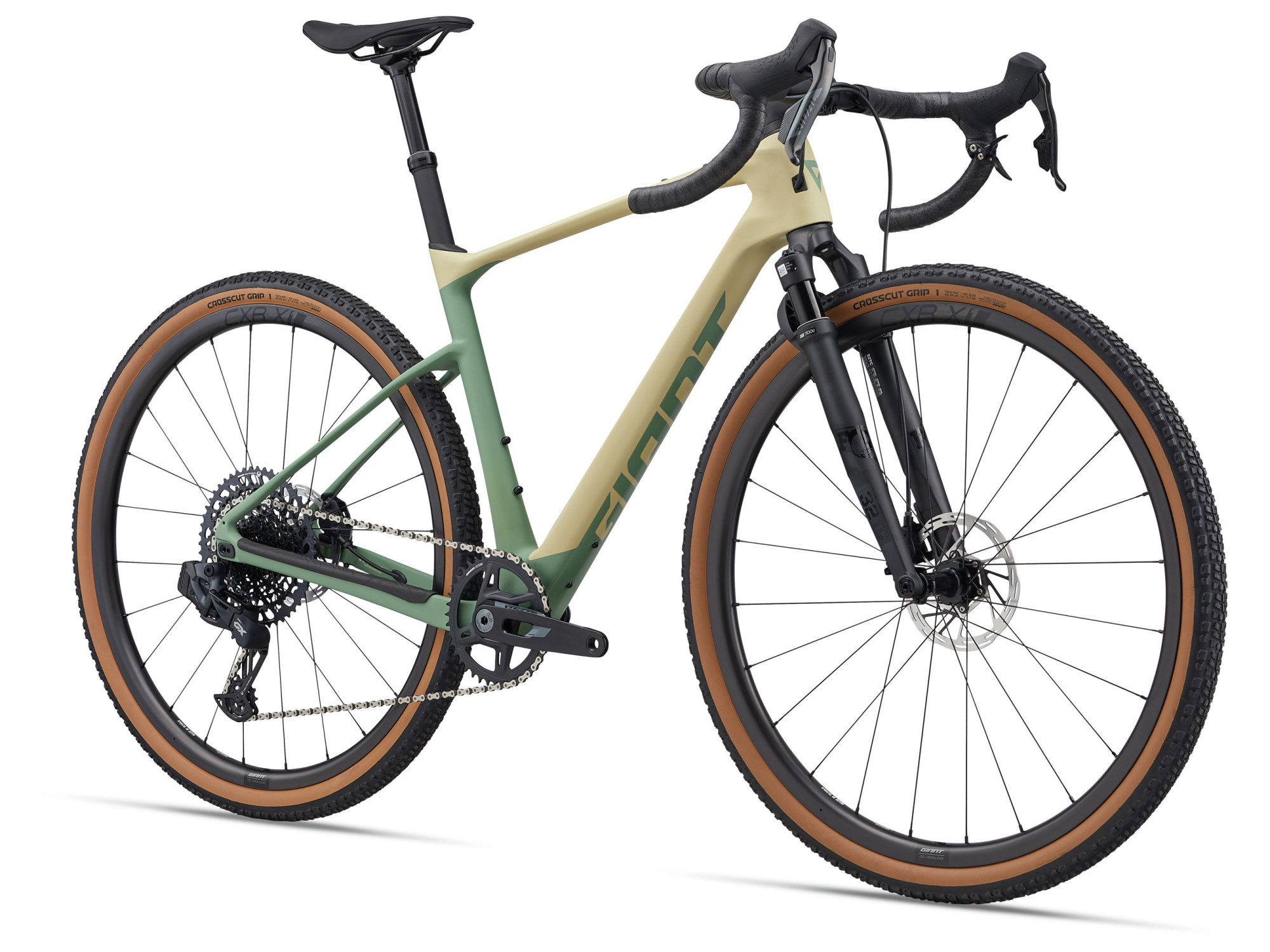

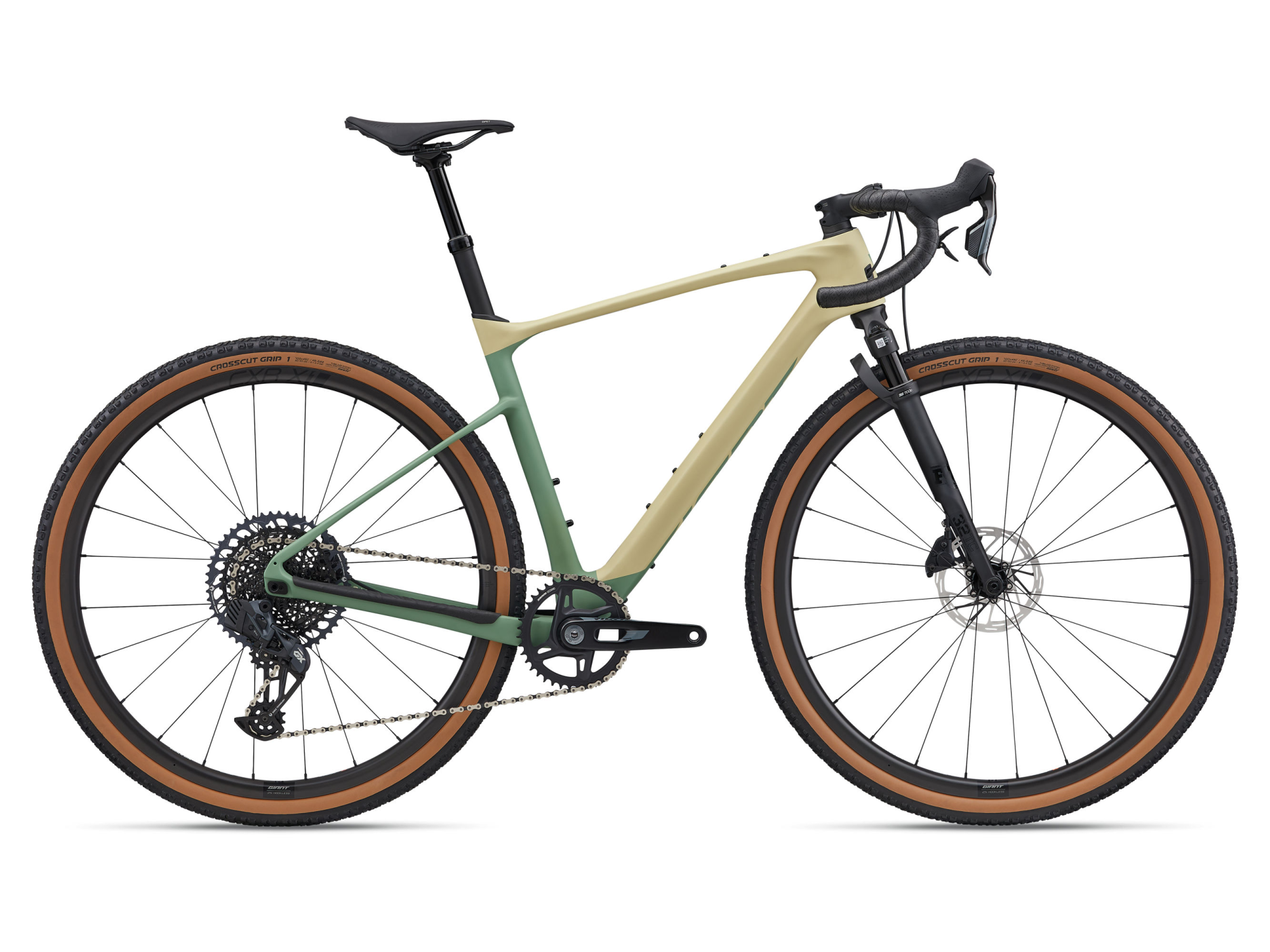

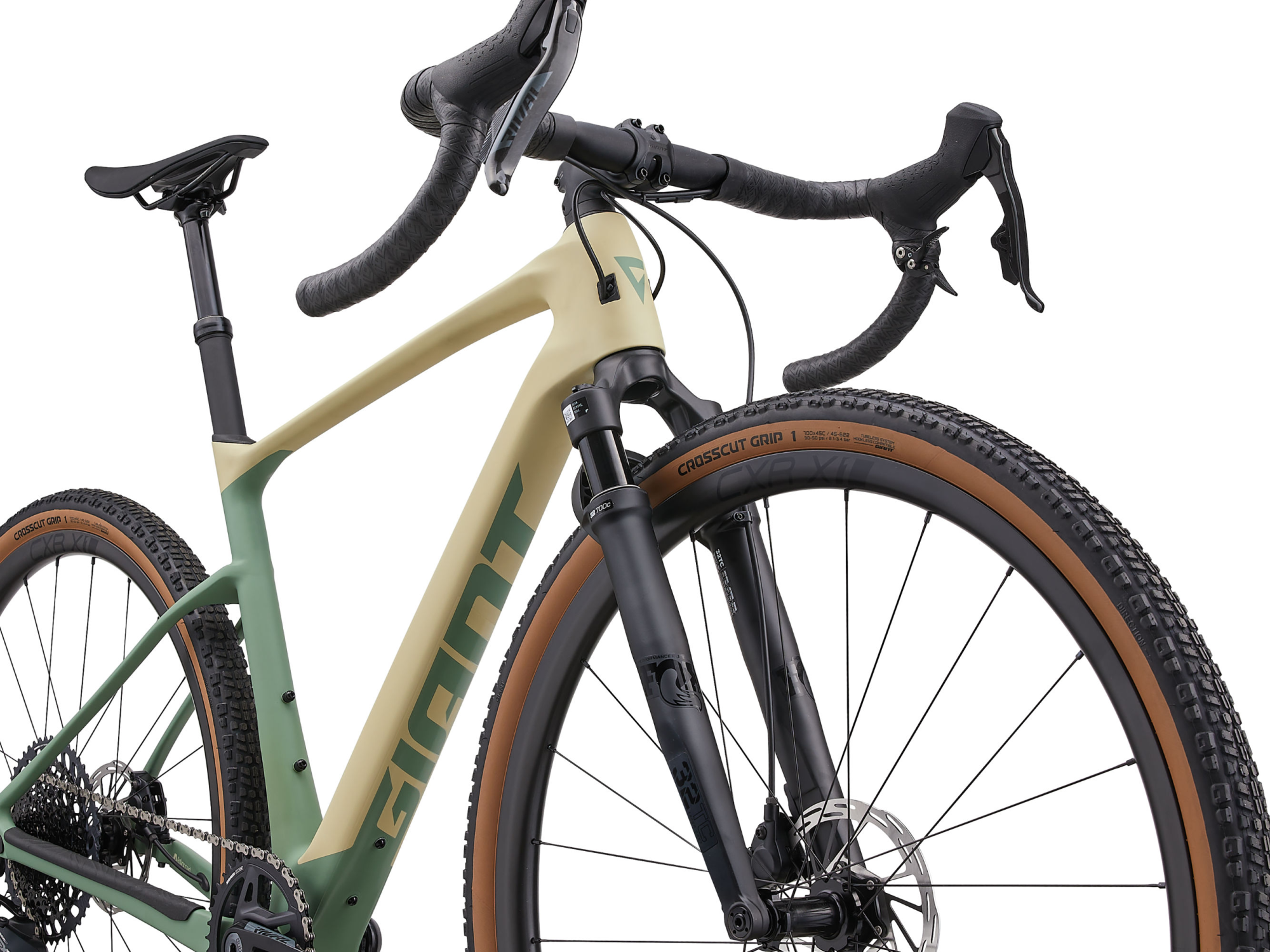

2026 Giant Revolt X Advanced Pro 1
| Frame |
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout |
| Fork |
Fox 32 Float TC, Performance Elite, 40mm, FIT 4 damper, 12x100mm Kabolt thru-axle |
| Bar |
Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm |
| Grips |
Stratus Lite 3.0 |
| Stem |
Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm |

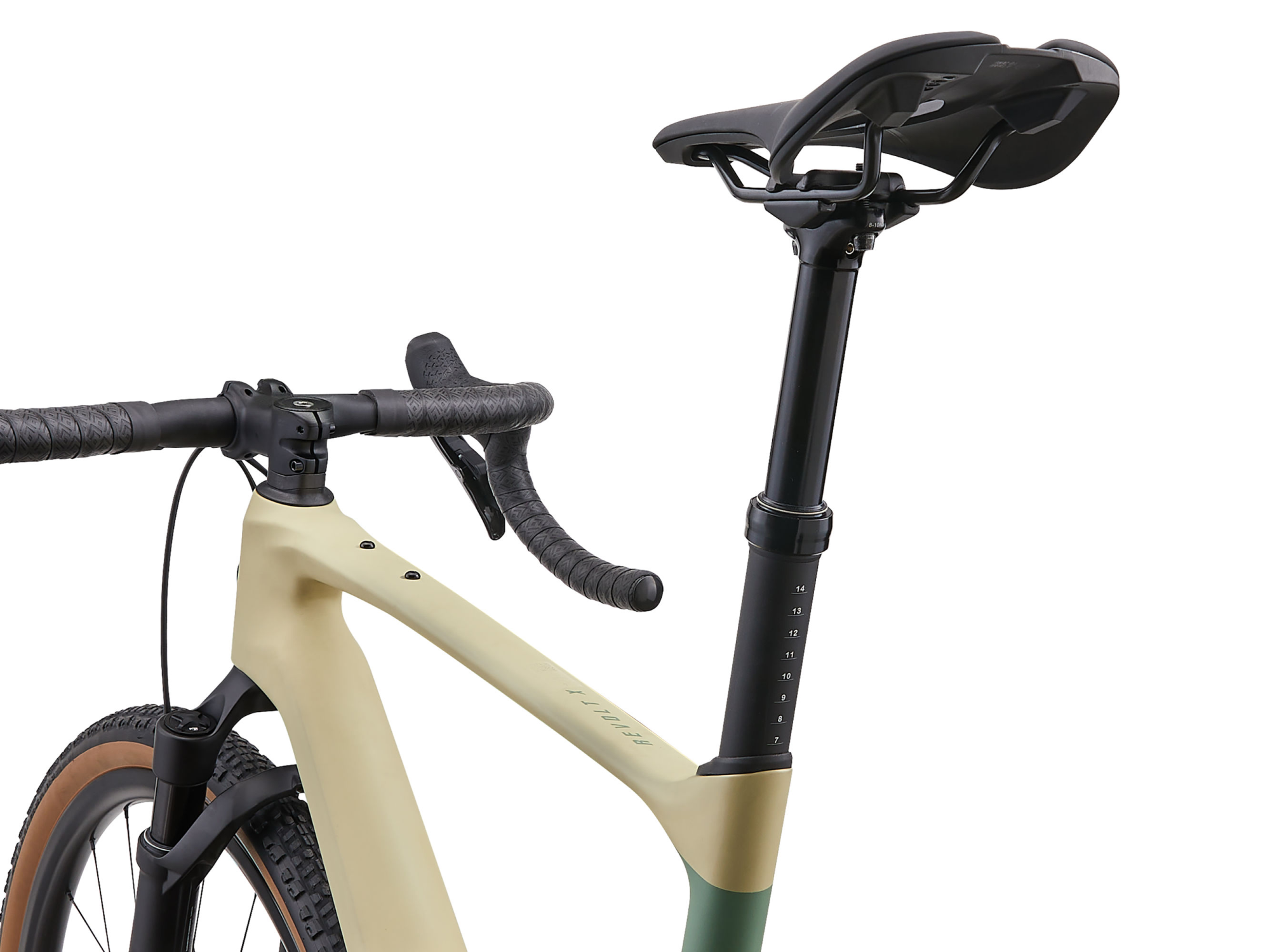

| Seatpost |
Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop |
| Saddle |
Giant Grit SL |
| Shift Levers |
SRAM Rival AXS E1, 1x12 |
| Front Derailleur |
N/A |

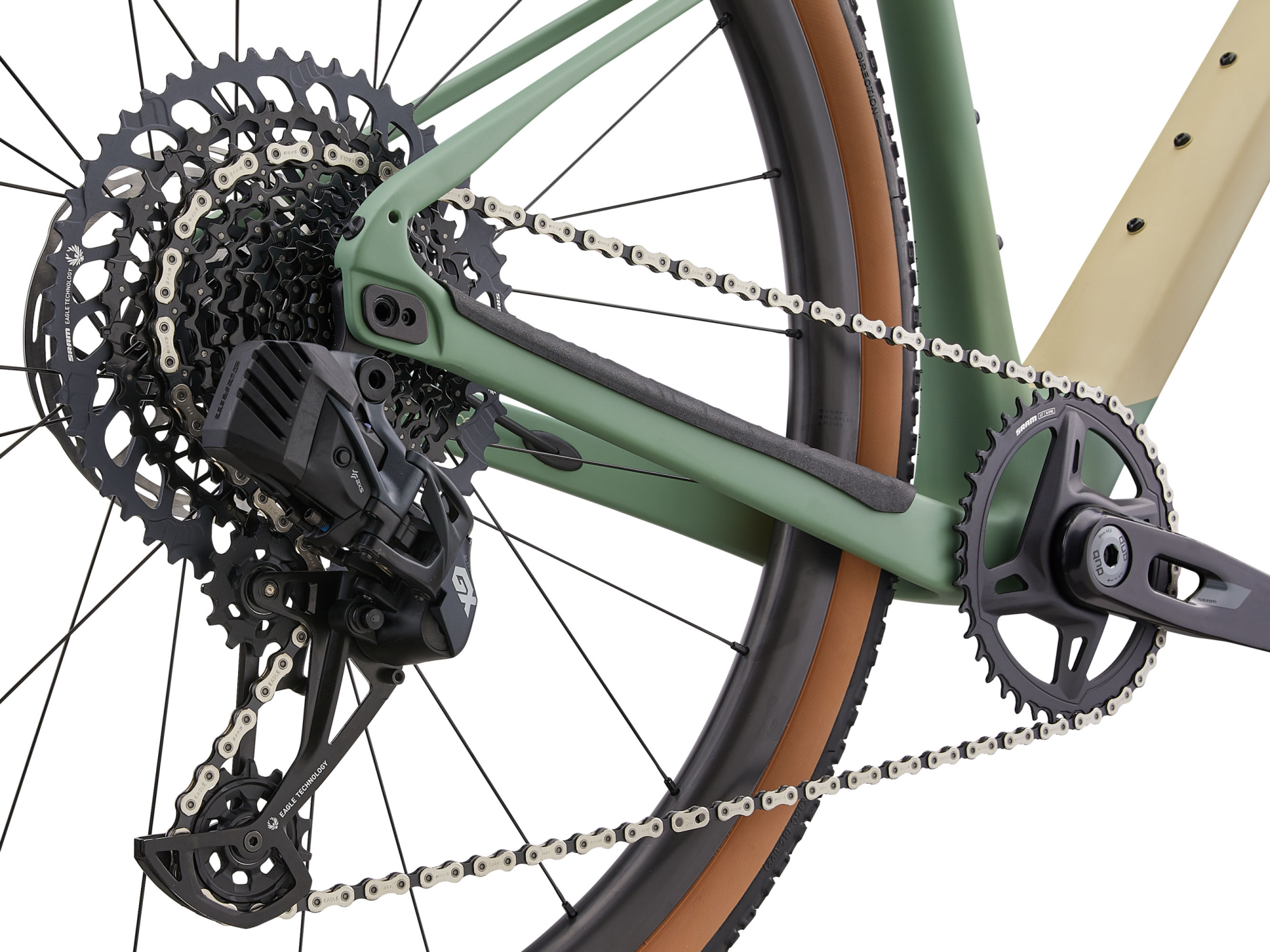

| Rear Derailleur |
SRAM GX Eagle AXS |
| Brakes |
SRAM Rival AXS E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm |
| Brake Levers |
SRAM Rival AXS E1 hydraulic |
| Cassette |
SRAM XG-1275, 12-speed, 10x52 |
| Chain |
SRAM GX Eagle |
| Crankset |
SRAM Rival XPLR E1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket |
SRAM DUB, press fit |
| Rims |
Giant CXR 1 X1 WheelSystem, [F] 25.8mm, [R] 25.8mm |
| Hubs |
[F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes |
Sapim Laser |
| Tyres |
Giant CrossCut Grip, 700x45c, tubeless |
| Extras |
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position |
| Max Tyre Clearance |
53mm |
| Weight |
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
