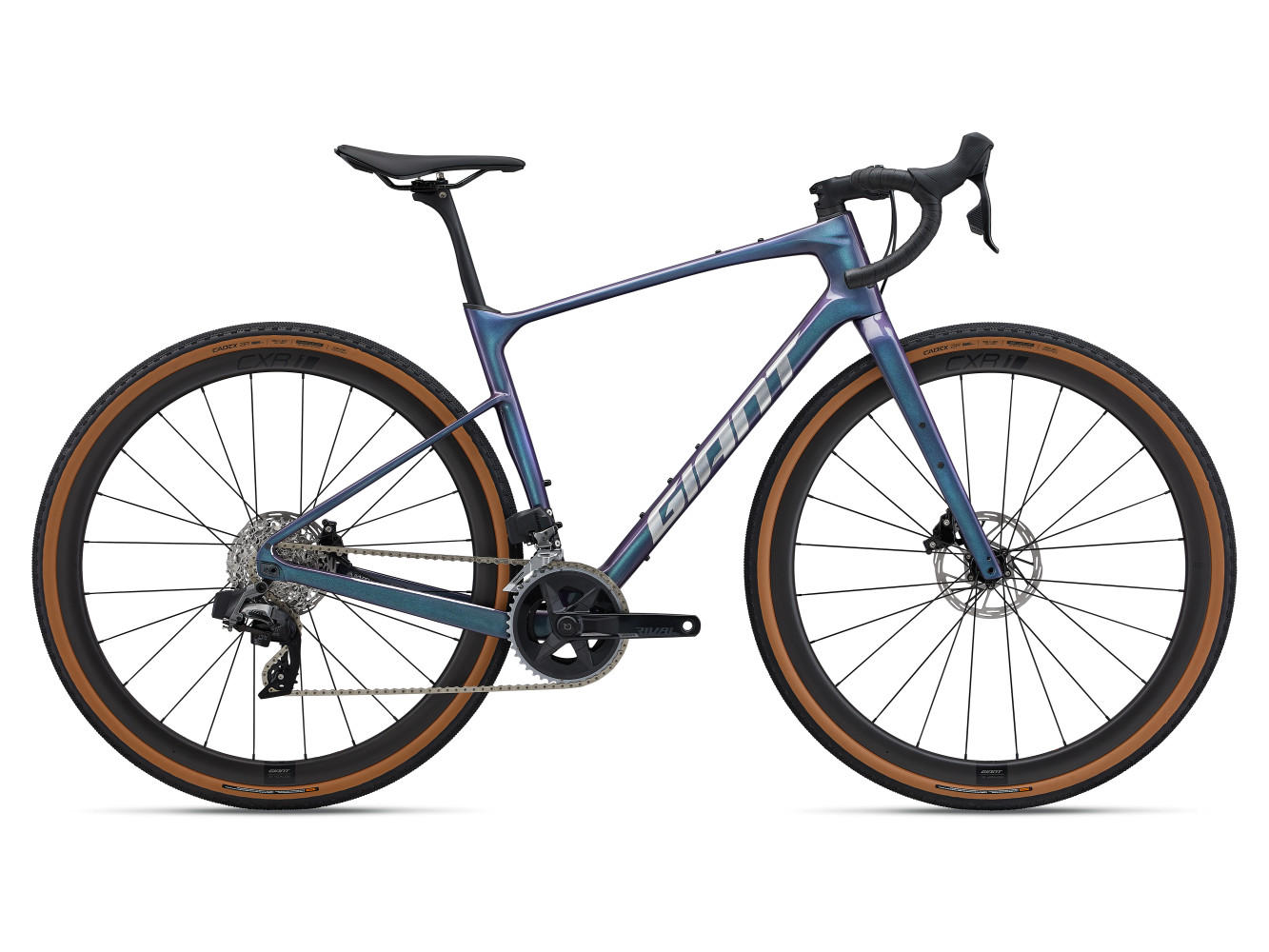

2024 Giant Revolt Advanced Pro 1
Fast gravel is fun gravel. The bike of choice for Giant gravel racing pros, this superlight speedster delivers a smooth ride over rugged roads, and is adaptable to all types of conditions and riding styles.
Lightweight efficiency
Advanced composite frame and Advanced SL composite fork save a combined 200g compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
A lowered seatstay junction with smaller diameter tubes absorbs road shocks and vibrations. The Contact SLR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimise compliance without sacrificing stiffness while cornering, sprinting and cl
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum complianc
| Sizes | S, M, M/L, L, XL |
| Colour | Gloss Blue Dragonfly/Chrome |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Rear Shock | N/A |
| Bar | Giant Contact SLR XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse SLR, composite, -5/+15mm offset |
| Saddle | Giant Approach SL |
| Pedals | PEDALS NOT SUPPLIED |
| Shift Levers | SRAM Rival eTap AXS, 2x12 |
| Front Derailleur | SRAM Rival eTap AXS |
| Rear Derailleur | SRAM Rival eTap AXS |
| Brakes | SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm |
| Brake Levers | SRAM Rival eTap AXS hydraulic |
| Cassette | SRAM Rival, 12-speed, 10x36 |
| Chain | SRAM Rival D1 |
| Crankset | SRAM Rival D1 DUB, 30/43 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm |
| Hubs | [F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tyres | CADEX AR, 700x40c, tubeless |
| Extras | Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
